Not every TP-Link router supports a built-in VPN client on stock firmware. Before following this guide, confirm your router meets the following conditions.
Supported hardware: VPN Client support on TP-Link stock firmware is specific to the router model, hardware revision, and firmware version. Do not assume your router is supported based on product series alone. Confirm that Advanced > VPN Client exists in your admin panel, or check your exact model number and hardware version on TP-Link's support site before proceeding. Deco mesh systems are not covered here; VPN client support varies significantly across Deco hardware and firmware versions.
Firmware: Update your router to the latest available firmware before proceeding. WireGuard support was introduced in later firmware releases on select models. If a WireGuard option does not appear in your admin panel after updating, your router does not support it on stock firmware; use OpenVPN instead.
What you will need:
http://192.168.0.1 or https://tplinkwifi.net.Windscribe's OpenVPN feature uses a separate set of credentials from your main account login. You also need a server-specific .ovpn config file.
.ovpn file to your computer.http://192.168.0.1 or https://tplinkwifi.net.
Figure 1: The Enable VPN Client control at the top of Advanced > VPN Client. No profile will connect until this is on. Screenshot: TP-Link.
If the VPN Client option is absent, your current firmware does not support it. Check TP-Link's support site for your model and update accordingly.
.ovpn file you downloaded in Step 1. Windscribe's generated OpenVPN configs are provided as single .ovpn files. TP-Link requires the uploaded OpenVPN config file to be under 20 KB. If TP-Link rejects the upload, regenerate the file and try another protocol, port, or OpenVPN version.
Figure 2: The Add Profile dialog with the VPN Type list open and OpenVPN selected. Windscribe does not support the PPTP or L2TP/IPSec options shown here. Screenshot: TP-Link.
Figure 3: A completed OpenVPN profile form before it is saved. “Upload successfully” confirms the .ovpn file was accepted; click Save to finish. Screenshot: TP-Link.

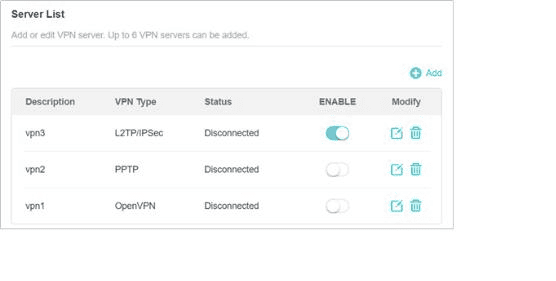

Figure 4: The Server List. Use the ENABLE control to enable a profile. This example has one profile enabled, although every profile shown is disconnected. Only one profile can be enabled at a time. Screenshot: TP-Link.
Figure 5: Selecting the devices that will use the VPN server. Device identifiers have been redacted. Devices you do not select continue using your regular ISP connection. Screenshot: TP-Link.
Devices not added to the binding list will continue routing traffic through your regular ISP connection.
Note: TP-Link's stock VPN Client can store up to six VPN profiles, but only one profile can be enabled at a time. Disable the current profile before switching locations or protocols.
WireGuard is available on select TP-Link models running sufficiently recent stock firmware. If WireGuard does not appear as a VPN type option, update your firmware first.
.conf format to your computer.The primary method in Step 7 is to import this file directly. TP-Link supports a specific set of WireGuard client parameters. Before importing, open the file in a plain text editor and remove unsupported IPv6 address entries and the MTU line if they are present, as shown in Figure 8. The file contains two sections:
[Interface]: PrivateKey, Address, DNS, and sometimes MTU.[Peer]: PublicKey, PresharedKey, AllowedIPs, and Endpoint.

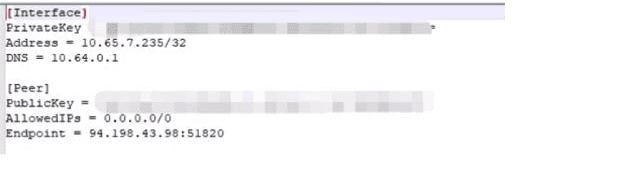

Figure 6: A WireGuard config containing the parameters used for TP-Link setup. Key values are redacted. Screenshot: TP-Link.
Follow the same path as in Step 2:
.conf file you downloaded in Step 5.

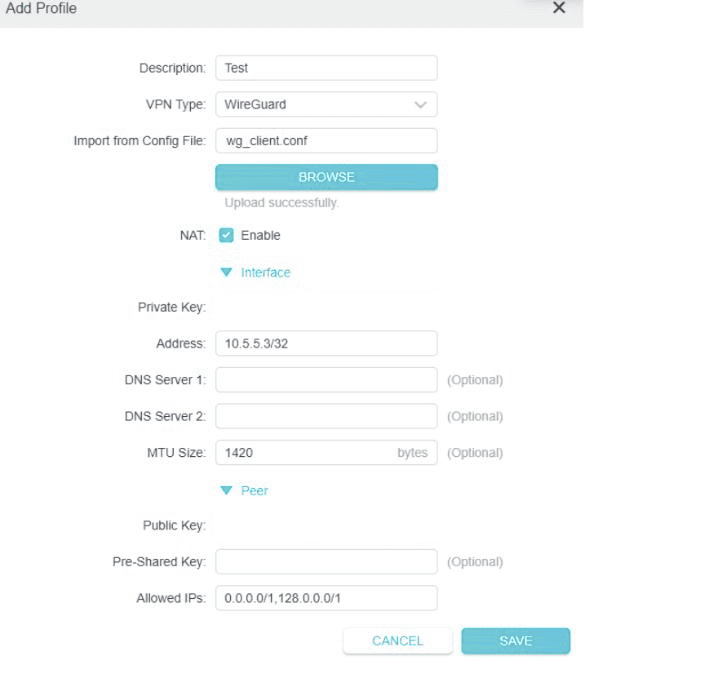

Figure 7: An imported WireGuard profile before it is saved. The Interface and Peer values populate from the .conf file. Key values have been redacted. Screenshot: TP-Link.
If the router rejects the config file, remove only the unsupported IPv6 address, the IPv6 ::/0 entry in AllowedIPs, and the MTU line shown by TP-Link. Do not remove PrivateKey, PublicKey, PresharedKey, the IPv4 0.0.0.0/0 entry in AllowedIPs, or Endpoint. If it still fails, use OpenVPN or check for newer firmware.

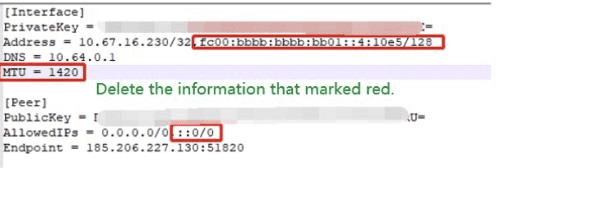

Figure 8: TP-Link's annotated config example marks the IPv6 address, MTU line, and IPv6 AllowedIPs entry for removal before import. Screenshot: TP-Link.
Once the VPN profile is enabled and devices are assigned, confirm the tunnel is working correctly.
Figure 9: The enabled WireGuard profile shows a Connecting status while the connection is being established. It will read Connected once the tunnel is up. Screenshot: TP-Link.
Your current firmware version does not include the VPN Client feature. Visit TP-Link's official support site, search for your model, and install the latest firmware. If the feature remains absent after updating, your current stock firmware for that model does not provide it. Installing third-party firmware such as OpenWrt is an option on some hardware and supports both OpenVPN and WireGuard, but it is outside the scope of this guide and may affect warranty or support coverage on some models.
Confirm you are entering the Windscribe OpenVPN credentials from the Config Generator page, not your Windscribe account email and password. If the credentials are correct, download a new .ovpn file using TCP instead of UDP and update the profile.
This is often a keepalive or timeout issue. Try a different server location in the Windscribe Config Generator and replace the existing profile with the new .ovpn file.
WireGuard support requires a firmware version that introduced it for your model. Update to the latest firmware from TP-Link's support site. If no firmware update adds it, OpenVPN is the available alternative on that hardware.
OpenVPN performs encryption in software and is CPU-intensive. On routers with modest processors, throughput will be limited. WireGuard uses a leaner cryptographic implementation and is often faster on the same hardware. Switch to WireGuard if your router supports it.
Review the device binding list configured in Step 4 or Step 8. On models that use device binding, each device must be explicitly added by IP address or MAC address. Confirm that the device's IP address has not changed. Assign a static local IP to the device in the router's DHCP settings to prevent this.
If your public IP still shows your ISP address, the VPN profile may not be active. Check the status in the VPN Client list and reconnect if needed. For WireGuard, confirm the IPv4 AllowedIPs value still matches the value Windscribe generated. If a DNS leak is detected specifically, check that the DNS field in the WireGuard config was not altered during manual editing. For OpenVPN, verify the .ovpn file was not corrupted during download by regenerating it from the Windscribe Config Generator and uploading it again.
Yes. Manual config generation for both OpenVPN and WireGuard requires a Pro or Build-A-Plan subscription. Build-A-Plan accounts can generate configs only for the locations included in their plan, while Pro accounts can generate configs for all available locations. See current plans and pricing.
Only devices you assign to the VPN tunnel through the router's device binding interface. Devices not added to the binding list continue routing traffic through your regular ISP connection. On routers that route all traffic through the VPN by default and do not show a device binding interface, all connected devices are covered automatically.
No. TP-Link's stock VPN Client stores up to six profiles but allows only one to be enabled at a time. You can store both profile types on the router and switch between them, but the enabled profile must be disabled before enabling another.
WireGuard uses a leaner cryptographic design and is generally faster, particularly on routers with modest processors. OpenVPN is more broadly supported across TP-Link hardware. If your model supports WireGuard and your firmware is current, it is the better option for most users. If not, OpenVPN is a reliable alternative.
On many TP-Link models, a previously enabled VPN profile reconnects after a reboot. Confirm this after your first restart by checking the profile status in the VPN Client section and running a quick leak test on an assigned device at ipleak.net.
Yes, to some degree. The router's CPU handles the encryption for all tunneled traffic, and throughput is capped by its processing capacity. WireGuard imposes less overhead than OpenVPN and performs better on lower-powered hardware. Higher-end Archer models handle VPN traffic more efficiently than entry-level ones.
No, not entirely. Router-level VPN protects all assigned devices at the network level. However, using router configs instead of the Windscribe app means you lose access to Split Tunneling, Firewall protection, and easy in-app protocol switching. R.O.B.E.R.T. still applies to traffic routed through the Windscribe tunnel and can be managed from your account. For devices where those app features matter, you can also install the Windscribe app directly.
Windscribe states that it keeps no logs that identify what users do online. The company runs RAM-only servers, publishes transparency reports, and has completed third-party audits. Read the full Windscribe privacy policy.
If stock firmware does not support the VPN Client feature, or if WireGuard config import consistently fails, the practical options are to install a newer firmware update if one exists for your model or use the Windscribe app directly on individual devices instead of routing through the router.
Router-level VPN covers your whole network, but it routes traffic without access to several features that are only available in the Windscribe app. When you use router configs instead of the app, Split Tunneling, Firewall protection, and easy in-app protocol switching are not available at the device level. R.O.B.E.R.T. still applies to traffic routed through the Windscribe tunnel and can be managed from your account dashboard.
For devices where those features matter—a work laptop, a phone used on public Wi-Fi, or any device you use outside the home network—installing the Windscribe app gives you complete control alongside your router setup.
Compatible paid plans include access to manual config generation, locations in 69+ countries, no hard simultaneous-device limit for normal personal use, and R.O.B.E.R.T.
